Side scan sonar is a powerful tool in modern fishing, but its effectiveness hinges on proper initial setup. Before anglers can confidently interpret brush piles, stumps, ledges, or any other structure, they must first configure the system correctly and make a few deliberate early tweaks. Although the technology is sophisticated, getting high-quality images starts with just a handful of essential adjustments made in the first moments on the water.
Consistency begins with boat control. Before touching any settings, the angler must idle the boat in a straight line at a steady, moderate speed. Even slight turns, surges, or slowdowns can distort the image and undermine clarity. Once the boat is tracking cleanly, the display can be tuned. While side scan units rarely need major changes once they’re set, the initial adjustments—range, frequency, and contrast—determine how clear, consistent, and reliable the images will be.
Range
The first and most foundational setting is range. Consistency is vital because switching between narrow and wide ranges changes the appearance and scale of objects, making interpretation less intuitive. Most anglers find the best results between 50 and 100 feet per side, with 70–80 feet serving as an ideal starting point. Holding this range steady allows the angler’s eye to learn and recognize the shape of rocks, stumps, brush, and fish shadows without constant recalibration.
Frequency
Frequency determines image detail and scanning distance. Higher frequencies such as 800 kHz produce crisp, detailed returns but cover less area. Lower frequencies like 455 kHz extend range but reduce fine detail. The angler chooses the frequency that matches their goal: high detail for shallow, isolated cover, or lower frequency for broader offshore surveying. Establishing the correct frequency early prevents misreading objects due to mismatched levels of detail.
Contrast

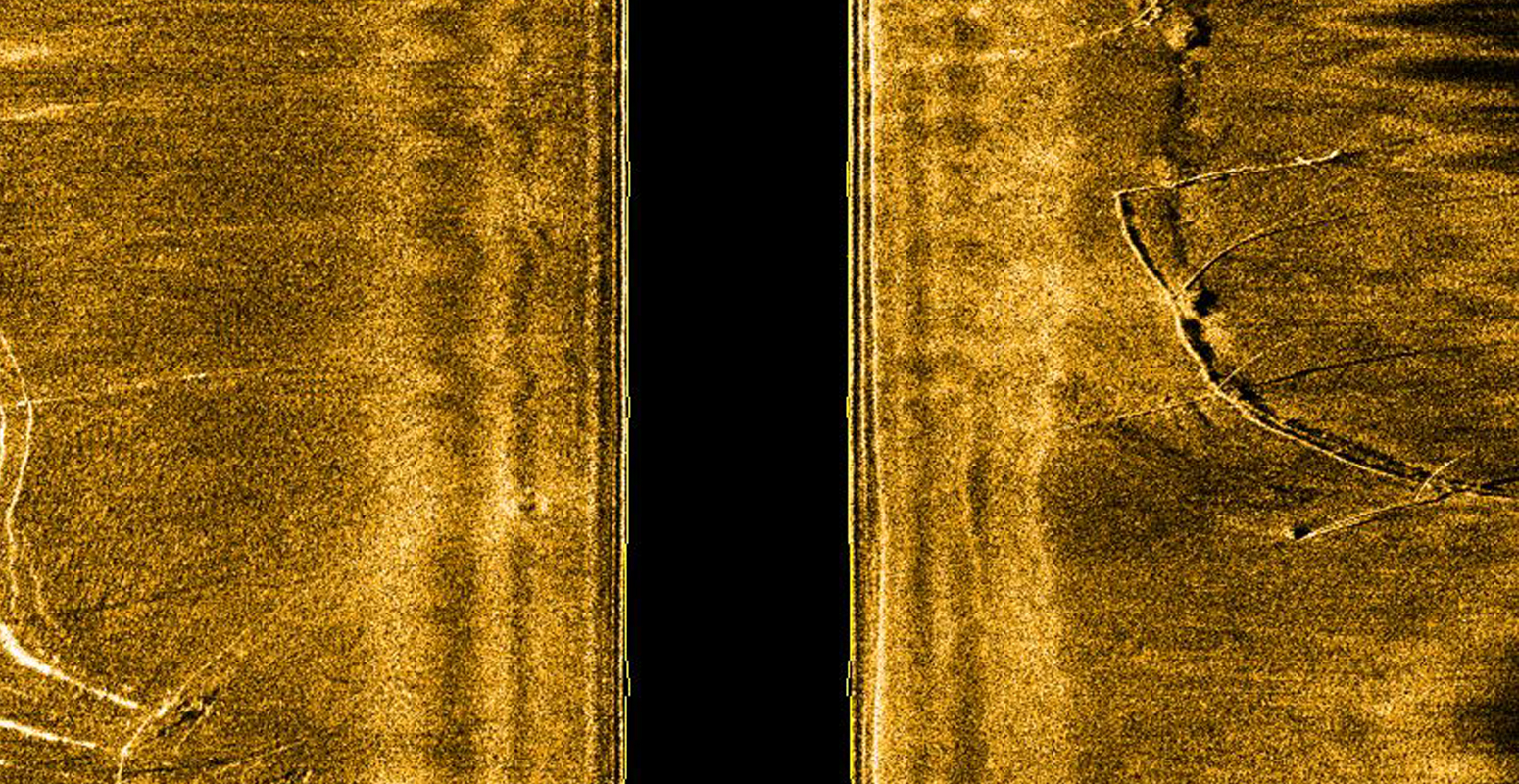

Contrast is typically the setting that requires the most fine-tuning. Auto contrast can help, but manual adjustments almost always create a cleaner, more readable picture. The angler gradually lowers contrast until objects and their shadows stand out sharply from the background. Shadows are especially valuable—they reveal the height, shape, and orientation of structure more effectively than the bright return itself. Dialing contrast down just enough produces the crisp shadows that make key features pop.
Early Tweaks That Improve the Picture
Once the main settings are locked in, small adjustments help refine the image. Water clarity, bottom hardness, depth, and sun angle on the display all influence how returns appear. If the image looks blown out, lowering contrast or shifting to a higher frequency often solves the problem. If objects appear faint or distant, widening the range or moving to a lower frequency helps. These tweaks take only seconds but dramatically sharpen the picture.
With the system optimized, the angler can use mapping to locate promising structure, then confirm and interpret it using side scan. Roadbeds, shell bars, foundations, rock piles, wrecks, and isolated cover show up clearly when the unit is set correctly. After marking waypoints, the angler can transition to targeted fishing with precision.
Over time, conditions will require subtle adjustments, but these tweaks become instinctive with practice. Mastering initial settings—and knowing when to fine-tune them—leads to better interpretation, more accurate waypoint selection, and far more productive days on the water.
