Sonar technology has transformed modern fishing by giving anglers an increasingly detailed view of what lies beneath, beside, and even ahead of their boats. The four primary sonar systems—traditional sonar, downscan imaging, sidescan imaging, and forward-looking “live” sonar—each play distinct roles on the water. Understanding their differences allows fishermen to combine them effectively and make more informed decisions about where fish are holding, how structure is arranged, and how fish respond to lures.
Traditional Sonar

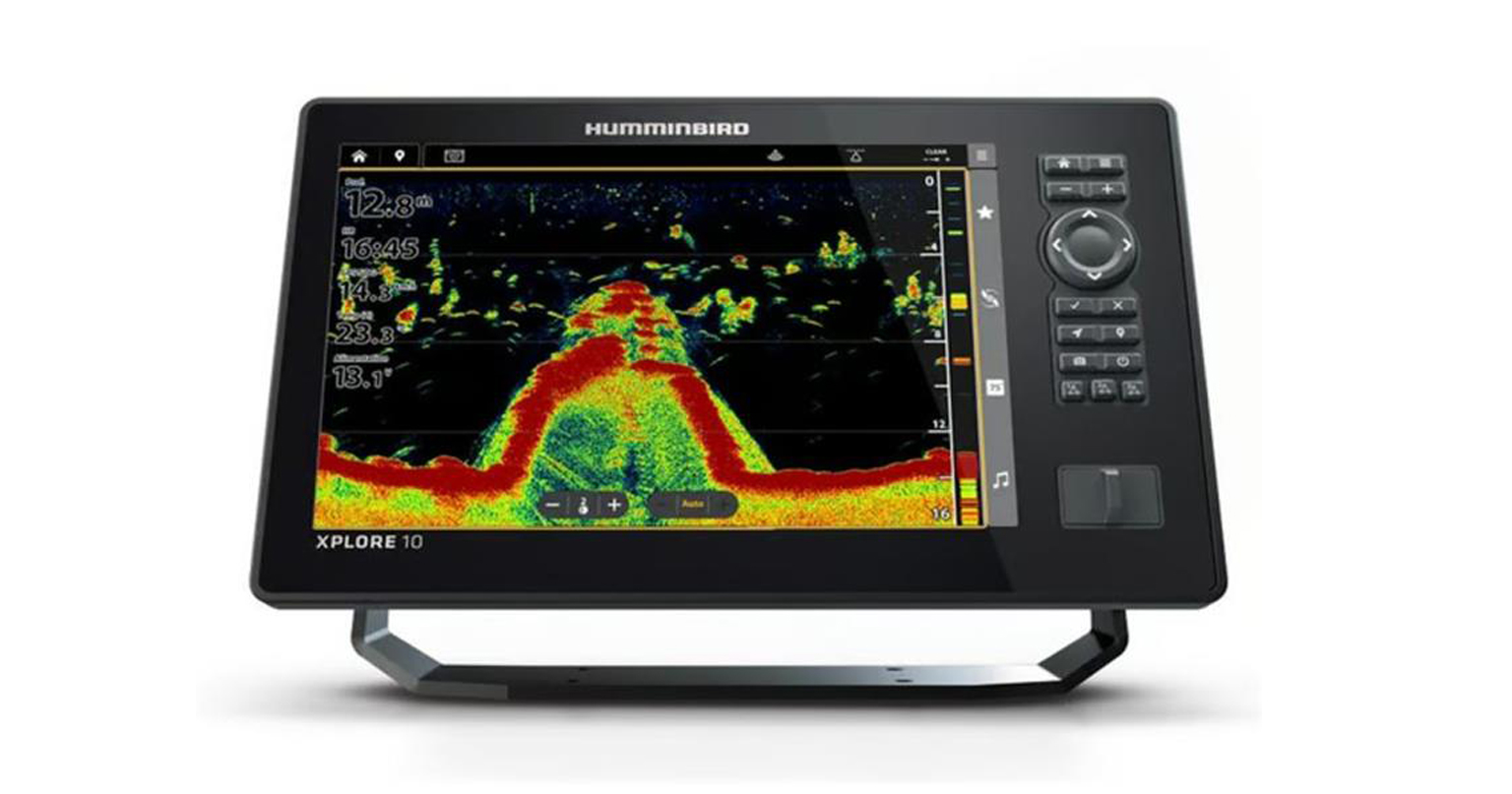

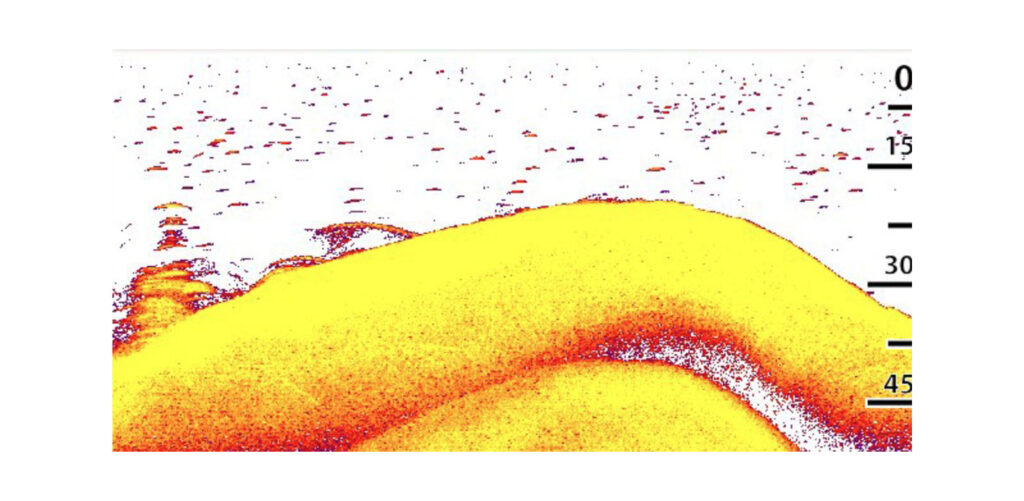

Traditional sonar, or 2-D sonar, is the foundation of all marine electronics. It uses a relatively wide cone-shaped beam to scan directly beneath the boat, producing the familiar display of colored arches and blobs that indicate fish and bait schools. Although it lacks the fine detail of more advanced imaging systems, its strength lies in its ability to clearly distinguish fish from the bottom, show suspended targets, and operate accurately even at higher boat speeds. This makes it indispensable for locating life in the water column and understanding overall depth and bottom composition.
Downscan

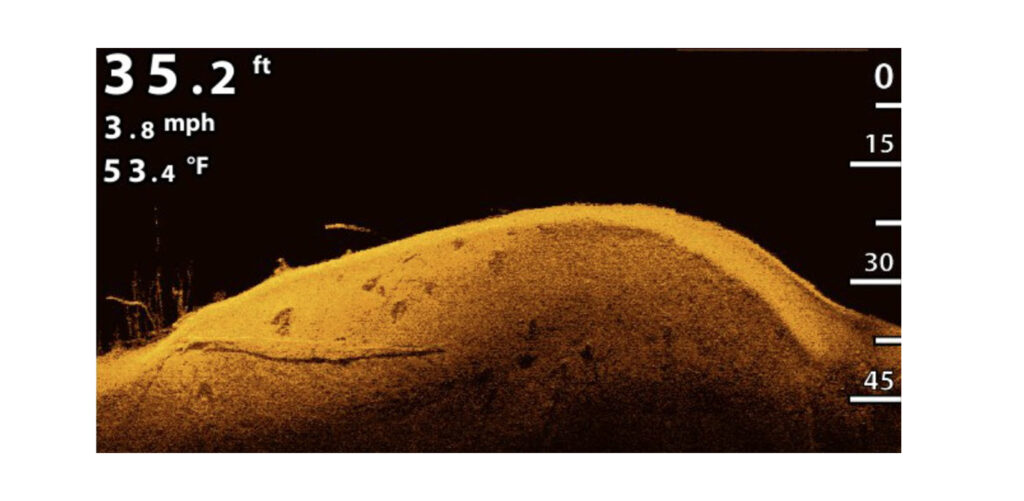

Downscan imaging—also known as Down Imaging or ClearVü—builds on this by using higher frequencies and a much thinner beam to generate highly detailed, photo-like images of the bottom directly below the hull. While fish no longer appear as arches, they are rendered as crisp dots, and the detail of submerged structure is dramatically improved. Downscan excels in identifying the exact shapes of brush piles, oyster bars, grass beds, and rockpiles, making it ideal for vertical presentations or picking apart specific pieces of structure.
Sidescan

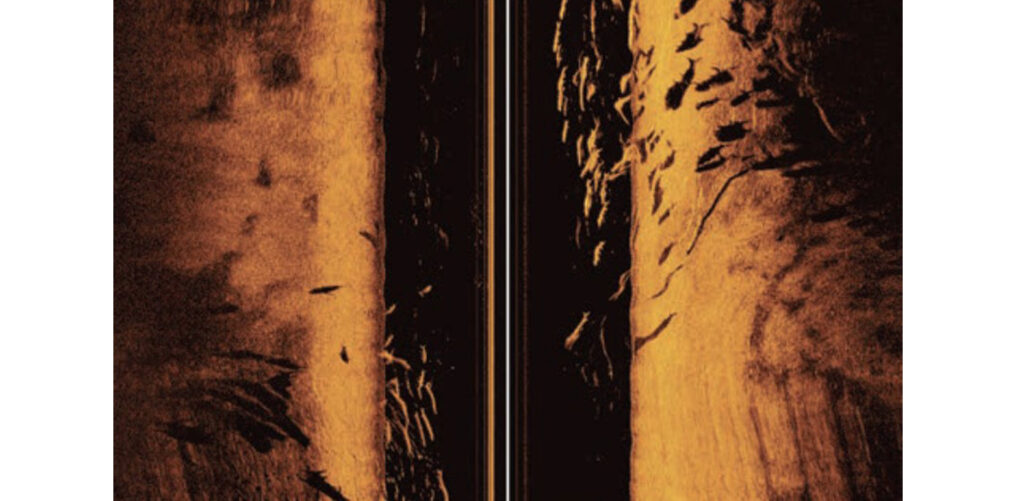

Sidescan imaging expands the angler’s view even farther. Instead of scanning downward, it shoots narrow beams to both the left and right of the boat, allowing the sonar to cover a remarkably wide area—often extending 120 to 200 feet per side. Its overhead-style images reveal structure, channels, drop-offs, and individual fish far outside the boat’s path. This makes sidescan an invaluable tool for scouting large expanses of water quickly, marking distant targets, and finding isolated pieces of cover without ever needing to drive directly over them.
Forward-Looking

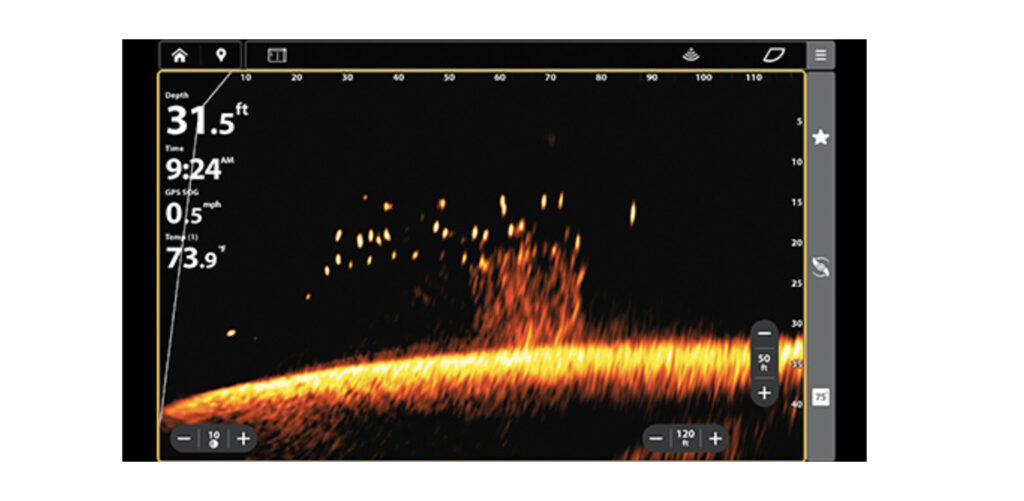

Forward-looking sonar represents the newest leap in marine electronics. Systems like LiveScope, ActiveTarget, and Mega Live allow anglers to view fish and structure in real time, as though watching a live underwater video feed. This technology makes it possible to see fish move, feed, or react to lures, and even to cast directly at individual fish before they approach the boat. Its precision and immediacy make it especially effective for targeting suspended fish, pelagic species, cruising redfish, and bass holding in open water.
Quick Reference
1. Traditional Sonar (2D Sonar)
What It Is
Traditional sonar uses a cone-shaped beam (usually 20–60° wide) that scans directly beneath the boat. It shows fish as arches due to how the cone passes over them.
How It Looks
- Color display with arches or blobs
- Less detailed structure
- Great for showing fish in the water column
Best For
- Finding fish that are suspended
- Locating general bottom depth
- Tracking bait schools
- Seeing thermoclines or vegetation height
Benefits
- Best at separating fish from bottom
- Works at high speed
- Wide coverage = easy to find life
- Great all-purpose sonar
2. DownScan / Down Imaging
(Lowrance DownScan, Humminbird Down Imaging, Garmin ClearVü)
What It Is
DownScan uses higher frequencies and a much thinner beam, giving you photo-like clarity of what’s directly below the boat.
How It Looks
- Very crisp, detailed images
- Clear structure shapes: logs, rocks, brush, grass
- Fish appear as dots, not arches
Best For
- Identifying structure (brush piles, rocks, wrecks)
- Seeing fish hiding inside structure
- Vertical fishing (jigging, drop-shotting)
- Slow-speed scanning
Benefits
- Far higher detail than traditional sonar
- Allows you to distinguish structure vs. fish
- Ideal for targeting exact spots
3. SideScan / Side Imaging
(SideScan, SideVu, Side Imaging)
What It Is
SideScan sends thin beams to the left and right of the boat, covering a far wider area than downscan.
How It Looks
- Bird’s-eye, top-down style image
- Shows structure and fish up to 120–200 ft on each side
- Fish appear as bright dots with shadows
Best For
- Searching large areas quickly
- Finding offshore structure, rocks, shell bars
- Identifying fish schools far from the boat
- Locating channels, ditches, grass lines
Benefits
- Covers massive amounts of water in a single pass
- Great for scouting new lakes/flats/bays
- Lets you drive next to structure instead of over it
- Perfect for tournament anglers and inshore exploration
4. Forward-Looking Sonar (Live Sonar)
(Garmin LiveScope, Lowrance ActiveTarget, Humminbird Mega Live)
What It Is
Forward-looking sonar sends real-time sonar beams ahead of your boat or trolling motor, showing fish movement live, like a video feed.
How It Looks
- Live, moving images
- You can see fish swim, turn, chase, or ignore the lure
- Can watch your lure fall and move in real time
Best For
- Targeting individual fish (“video-game fishing”)
- Suspended fish in open water
- Casting to fish you see before they see you
- Tracking predators, bait balls, or cruising redfish
- Winter fishing, vertical jigs, finesse fishing
Benefits
- The only sonar that shows fish behavior in real time
- Lets you see how fish react to lure presentation
- Reduces time wasted casting at empty water
- Extremely precise distance and direction targeting
🎣 Summary Table
| Sonar Type | Beam Direction | Best For | Primary Strength |
| Traditional 2D | Down (wide cone) | Suspended fish, depth | Best at identifying fish arches |
| DownScan | Down (thin beam) | Structure detail | High-resolution images under boat |
| SideScan | Left & right | Scouting large areas | Covers enormous search area |
| Forward-Looking | Forward (live) | Casting at fish you can see | Real-time fish movement |
How Anglers Combine Them
Most serious fishermen use all four:
1. Traditional Sonar
- To find fish arches while driving
2. DownScan
- To confirm if arches are fish or debris
3. SideScan
- To locate structure and fish to the left/right before setting up
4. Forward-Looking Sonar
- To cast directly to visible fish once you’re in position
Summary
Each type of sonar provides unique strengths, and when used together, they create a comprehensive understanding of the underwater environment. Traditional sonar helps identify fish presence, downscan confirms structure details, sidescan uncovers broad patterns and distant targets, and forward-looking sonar allows anglers to actively engage with fish in real time. By combining these systems, anglers can dramatically improve their efficiency, precision, and confidence on the water.
