CHIRP sonar has become one of the most significant advancements in modern fish-finding technology, offering anglers a clearer and more detailed view beneath the surface than traditional sonar systems ever could. The name CHIRP stands for Compressed High-Intensity Radar Pulse, and the technology’s strength lies in the way it transmits sound waves into the water.
Unlike conventional sonar, which sends a single, fixed-frequency pulse such as 83 kHz or 200 kHz, CHIRP emits a continuous sweep of frequencies in each ping. This expanded frequency range dramatically enhances the amount of information returned to the unit and allows the processor to build a far more precise image of fish, structure, and bottom composition.
One of CHIRP’s most noticeable benefits is its superior target separation. Because it analyzes a broad band of frequencies rather than a single tone, CHIRP can distinguish between objects that sit very close together. Fish that might blend into one another on traditional sonar—such as tightly grouped bait or gamefish hugging the bottom—appear cleanly separated.
Even individual fish inside dense schools become easier to identify. This heightened clarity is paired with a significant reduction in noise. CHIRP filters out much of the clutter, interference, and false echoes common in older systems, resulting in displays that show crisper arches, firmer bottom readings, and more reliable returns in both shallow and deep water.
CHIRP also excels at depth performance. Lower-frequency CHIRP sweeps penetrate deeper water more effectively than single-frequency sonar, making it possible to read bottom contours and mark fish hundreds or even thousands of feet down. For offshore anglers targeting tuna, grouper, snapper, or swordfish, this depth capability is invaluable.
At the same time, higher-frequency CHIRP shines in shallow water, offering incredibly detailed views useful for bass fishing, inshore saltwater applications, or identifying specific pieces of structure.
Additionally, CHIRP maintains accuracy at higher boat speeds. Traditional sonar often struggles with clarity when a vessel is running, but the stronger and more detailed echoes of CHIRP help keep bottom lock and target visibility even when traveling quickly across a lake or bay.
In essence, CHIRP sonar represents a major leap in underwater imaging. By sweeping a range of frequencies rather than relying on a single one, it provides sharper, cleaner, and more dependable information to anglers. Whether used in shallow flats, mid-depth reefs, or deep offshore environments, CHIRP allows fishermen to interpret the underwater world with greater confidence and precision, ultimately making it easier to locate fish and understand the structure they relate to.
Quick Reference:

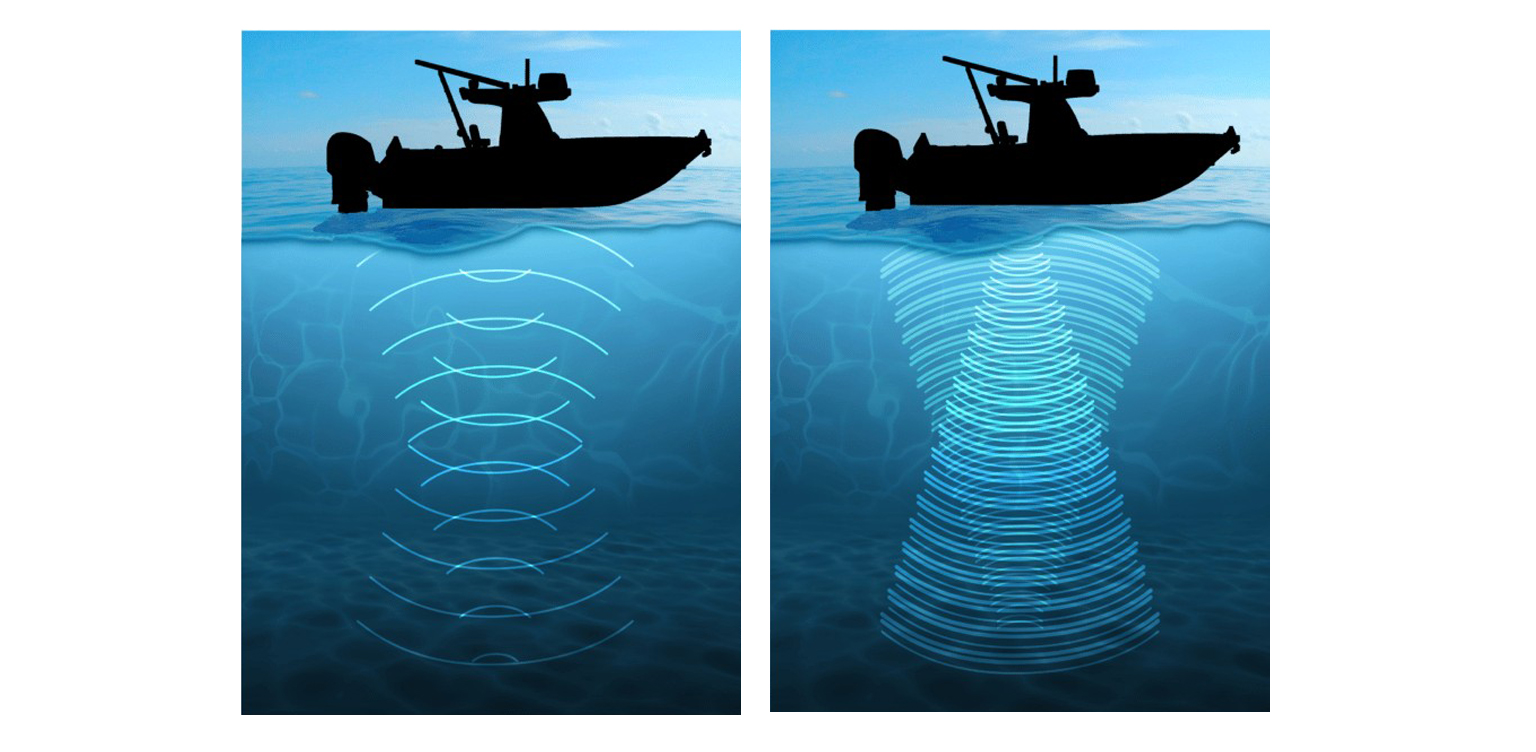

Traditional sonar sends one fixed frequency at a time—such as 83 kHz or 200 kHz. CHIRP, by contrast, sends a continuous sweep of frequencies (for example, 150–250 kHz) in a single pulse. When those returning echoes are processed, the system can extract far more information from each ping.
Benefits of CHIRP
1. Sharper Target Separation
Because CHIRP analyzes a wide band of frequencies, it can distinguish between objects that are very close together. This means:
- Individual fish separate cleanly.
- Fish holding tight to the bottom are easier to see.
- Bait schools appear more detailed.
It’s especially valuable when fish are stacked or when identifying gamefish mixed in with bait.
2. Clearer Images with Less Noise
CHIRP reduces background clutter and interference. The display shows:
- Cleaner arches,
- More solid bottom returns,
- Less false echoing in rough or deep water.
This is crucial in murky water or over complex structure.
3. Improved Depth Penetration
Lower-frequency CHIRP sweeps (such as 40–75 kHz) allow sonar signals to travel deeper while still maintaining usable detail. Saltwater anglers use CHIRP to read bottom and mark fish hundreds or even thousands of feet down.
4. Better Performance at Higher Boat Speeds
Traditional sonar often struggles with clarity when the boat is moving fast. CHIRP’s stronger, more informative return signals help maintain bottom lock and target visibility even while running.
How CHIRP Is Used in Practice
- Shallow water (10–100 ft): High-frequency CHIRP (150–250 kHz) gives crisp detail. Ideal for bass, inshore saltwater, and structure fishing.
- Mid-depth (100–600 ft): Medium-frequency CHIRP balances depth and detail. Great for offshore reefs or wrecks.
- Deep water (600–3,000+ ft): Low-frequency CHIRP penetrates far deeper, perfect for offshore tuna, grouper, halibut, and swordfish applications.
CHIRP vs. Traditional Sonar
| Feature | Traditional Sonar | CHIRP Sonar |
| Frequencies | Single | Sweeps a range |
| Clarity | Moderate | Very high |
| Target separation | Limited | Excellent |
| Noise | Higher | Much lower |
| Depth performance | Good | Exceptional |
| Ideal use | Basic fish finding | Detailed imaging & precision targeting |
Summary
CHIRP is like upgrading from a basic camera to a high-resolution one. You see more, with less noise, and can interpret the underwater world with far greater accuracy. For both freshwater and saltwater anglers, CHIRP has become the new standard because it makes finding fish easier, faster, and more reliable.
Photo courtesy of Navico.
