Fishing effectively with modern sonar requires understanding the frequencies of transducers and how each is best used in various fishing scenarios. Transducers, the heart of any fishfinder or sonar system, convert electrical signals into sound waves and send them into the water, allowing anglers to detect fish, structure, and underwater terrain.
Anglers now have the ability to choose from various transducer frequencies on their sonar units, and the options are sometimes confusing. Different frequencies offer distinct advantages and limitations, so choosing the right one for the type of fishing you intend to do is essential.
Traditional 2D or single-frequency transducers are the most common and are typically available in several standard frequencies. Low-frequency transducers, such as 50 kHz, are ideal for deep offshore water and open ocean fishing. Their long wavelengths allow sound to penetrate great depths, making them excellent for locating large schools of fish in deep water.
However, this comes at the cost of resolution; images are less detailed, and small structures or individual fish may be difficult to distinguish. Mid-range frequencies, such as 83 kHz, provide a balance between depth and clarity, suitable for mid-depth offshore lakes and coastal areas.
High-frequency transducers, such as 200 kHz, are best for shallow water, inshore flats, reefs, rivers, and lakes. These offer high-resolution images that clearly separate fish from underwater structures, though they cannot reach the depths of a 50 kHz transducer.

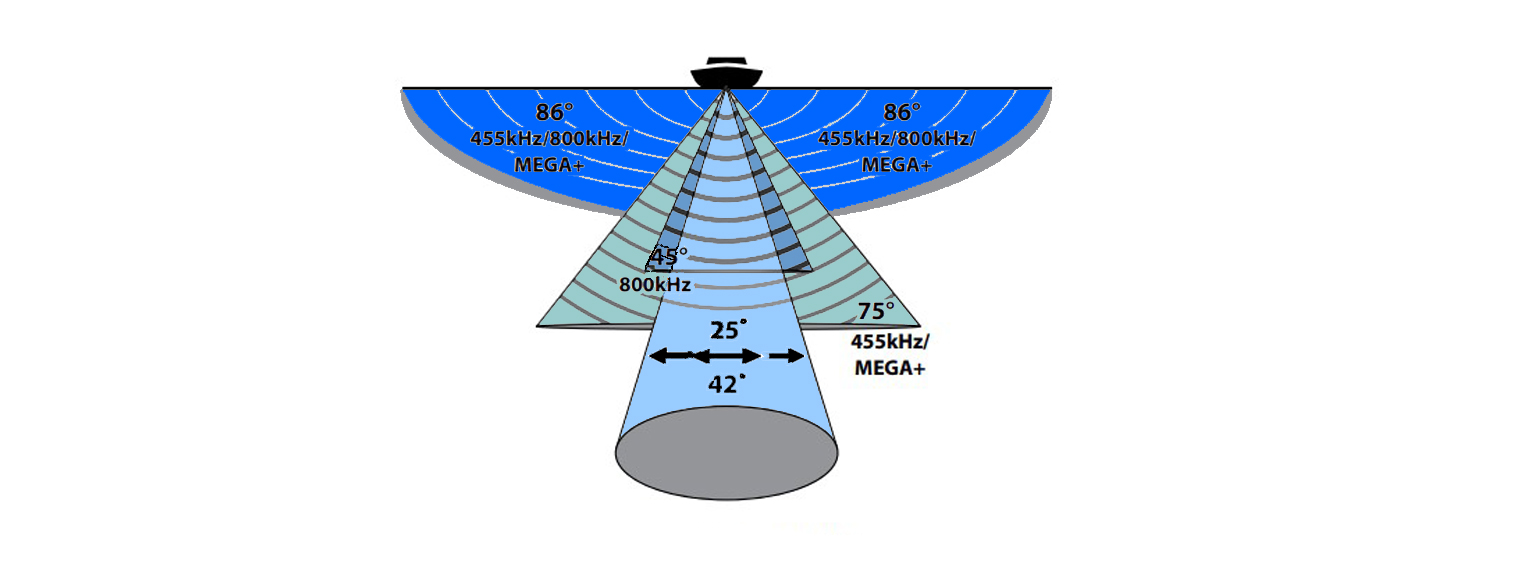

Very high frequencies, like 455–900 kHz, are typically used for DownScan or side imaging, offering near-photographic detail of underwater structure, docks, reefs, and vegetation, though they are limited to shallower depths.
CHIRP transducers have become increasingly popular for their ability to use a range of frequencies simultaneously. Low CHIRP, typically in the 28–50 kHz range, is suited for deep-water offshore fishing, while high CHIRP, around 150–250 kHz, is used in shallower inshore waters.
CHIRP sonar provides better target separation and reduces noise, giving more accurate readings and clearer images of fish and structure. By covering multiple frequencies in a single transducer, CHIRP units allow anglers to fish effectively in a wide range of depths without switching equipment.
DownScan and side imaging transducers are designed to give detailed images of the underwater environment. DownScan typically uses 455–800 kHz to provide clear views of the bottom, underwater vegetation, and cover where fish often hide.
Side imaging, operating in similar frequency ranges, allows anglers to scan wide areas to the sides of the boat, locating fish-holding structure without having to pass directly overhead.
Forward-looking sonar, often operating at much higher frequencies, is used to see ahead of the boat, identifying obstacles, shallow water hazards, or potential fishing spots before reaching them. This is particularly useful for sight-fishing or navigating unfamiliar areas.
In practice, the choice of frequency depends on water depth, fishing location, and target species. Shallow inshore flats benefit from high-frequency CHIRP combined with DownScan for precise detail, while deep offshore fishing requires low-frequency CHIRP to reach great depths.
Structure-heavy areas, such as reefs, docks, and submerged timber, are best served by side imaging transducers, while forward-looking sonar helps prevent accidents in shallow or hazard-prone waters.
Here’s a quick reference showing common frequencies, depth ranges, and typical uses:
| Frequency | Depth Range | Best Use / Notes |
| 50 kHz | 0–1500+ ft | Deep water, offshore, open ocean; locates large schools of fish; less detail |
| 83 kHz | 0–1000 ft | Mid-depth lakes/coastal water; balance of depth and detail |
| 200 kHz | 0–600 ft | Shallow water, inshore flats, reefs, rivers, lakes; high detail and target separation |
| 455 kHz | 0–100 ft | DownScan / SideScan; detailed structure, docks, weed beds, submerged objects |
| 800 kHz | 0–60 ft | Ultra-high detail imaging for shallow water or precise spotting of fish and cover |
| CHIRP Low (28–50 kHz) | 0–1500+ ft | Deep offshore fishing; broad depth coverage with better target separation than single 50 kHz |
| CHIRP High (150–250 kHz) | 0–600 ft | Shallow inshore fishing; high detail, reduces noise, separates fish from structure |
| Forward-Looking / ForwardScan (1–3 MHz) | 0–100 ft | See ahead of boat; avoid hazards, shallow flats, sight-fishing |
Quick Tips:
- Shallow inshore flats: 200 kHz CHIRP + DownScan (455–800 kHz).
- Deep offshore: 50 kHz CHIRP for depth; 200 kHz for detail in moderate depths.
- Structure-heavy areas: SideScan 455–800 kHz.
- Navigation / hazards: Forward-looking sonar (high MHz).
By understanding the capabilities and limitations of each frequency, anglers can maximize their efficiency and success on the water, using the right combination of transducers to match their specific fishing environment.
